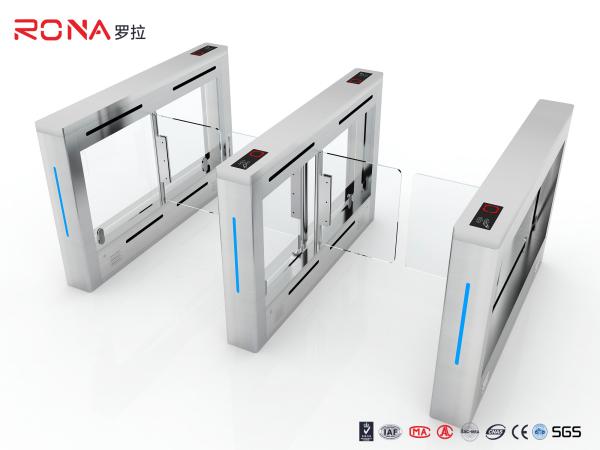

Fully Automatic Swing Barrier Turnstile With DC24V Brushless Motor
Gyms And Factory Access Control Swing Barrier Turnstile Gate Fully Automatic With Brushless Motor
Descriptions:
Swing Turnstiles offer a reliable and efficient method to ensure only authorized users are allowed access to each area of a building. The RNCF F5008H/HS is an attractive swing turnstile that is easily capable of handling high volume and abusive conditions. The compact unit makes it simple to construct a multiple lane set-up while the variety in colors allows you to match this turnstile perfectly to your lobby or branding.
FEATURES AND BENEFITS:
1. Use IC / ID cards, Bar code ,QR or magnetic cards as automatic identification system and achieve access,attendance fees or function
2. A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage
3. With voice and strobe light alerts
4.A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following
5. Double anti-clipping function, photocell antic lipping and mechanical anti-clipping
6.Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading
7.The barrier can be set to delay closing in 1-60s after a valid card-reading
Applications of swing barrier gates
1) The whole system runs smoothly, long-life performance, high operation dependability and fast response.
2) Alarm function, in case of illegal intrusion and reverse intrusion.
3) Infrared sensor to prevent pinch pedestrians.
4) Anti-breakthrough function. The gate is locked automatically until opening signal received.
5) Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card.
6) LED indicator.
7) Automatic reset function. If the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
8) When power off, optical turnstile will open automatically, which is complying with fire safety requirements.
Parameter of swing barrier gates
| 1 |
Product Name |
Gyms And Factory Access Control Swing Barrier Turnstile Gate Fully Automatic With Brushless Motor |
| 2 |
Model |
RNCF F5008H/5508HS |
| 5 |
auto reset time when there is breakdown |
10s |
| 6 |
Drive voltage |
24V |
| 8 |
run into working state when power on |
3 s |
| 9 |
Weight |
90kg |
| 11 |
Swing angle |
180° |
| 12 |
Arm length |
250-475(mm) |
| 14 |
normal life |
5 million times |
| 15 |
Specification |
L1400*W200*H990MM |
| 16 |
Interface |
standard port-RS485/RS232 |
| 18 |
communication interface |
RS 485, distance ≤1200m |
| 19 |
Framework |
USS304 |
| 20 |
Power voltage |
AC220 (10%more or less) V, 50(10%more or less) HZ |
| 21 |
Transit speed |
30~35 persons per minute (normal open), 25-30 persons/per minute ( normal close) |
| 22 |
Input interface |
relay switch signal, 12V level signal or 12V pulse signal, pulse width>100ms,drive current >10Ma |
